Infomir MAG322w1 IPTV SET-TOP BOX

Description

This modification enables users to establish a network connection without additional equipment.

MAG322w1 is a powerful set-top box containing a high-performance processor on the BCM75839 chipset, and 512MB RAM. It’s the optimal solution for quick launch of your IPTV/OTT project.

The set-top box is designed to fulfill current market needs. Your customers can enjoy the highest video and sound quality with HDMI 1.4b and S/PDIF outputs. HEVC support will dramatically reduce your network load

Hardware
Chipset BCM75839
Processor MIPS 4KE Dual Core CPU 750Mhz
Perfomance 2000 DMIPS
RAM 512 MB
Flash memory 512 Mb
Software
Operating system Linux 3.3

Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
Middleware supported Ministra multiscreen TV platform
Interfaces

Audio output S/PDIF, HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB2.0х2, Wi-Fi b/g/n 1×1
Sources of media content

PC and NAS in local network, Stream media protocols (RTSP,RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)
Audio formats MP3, MPA, M4A, WMA, Ogg, WAV
Video modes 1080i, 1080p, 720p, 576p, PAL, NTSC
Video сodecs MPEG-1/2, MPEG-4, H.264/AVC [email protected], WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support
Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, PGS, SRT, ASS, SUB
Playlist formats M3U
Standard set

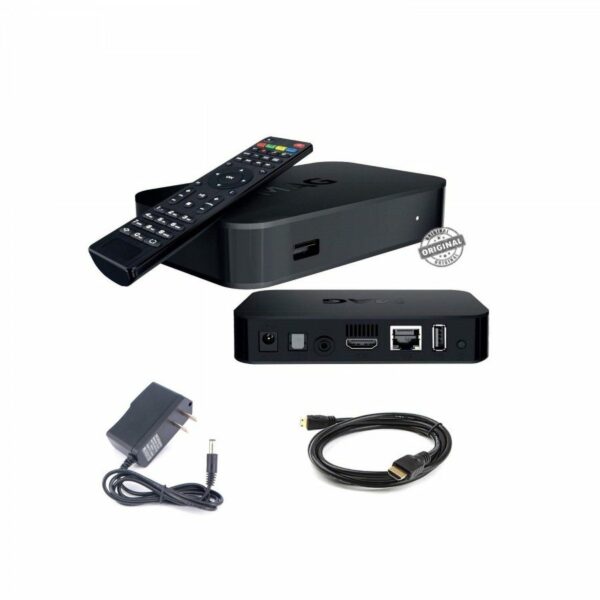

MAG322w1/MAG323w1 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
Modified versions

MAG322w1/MAG323w1 (Wi-Fi 802.11 b/g/n, 150 Mbps)
